How to use Symantec Custom Inventory to report Microsoft Office 365 Update Channel

File:Office 365 logo.png

Open SMP Console – > Settings -> All Settings -> Discovery and Inventory -> Inventory Solution -> Manage Custom Data Classes -> New data class -> Office 365 Update Channels

Create a Custom Data Class

Add a Attribute with the following Parameters:
Name: O365_Update_Channel
Data type: String
Maximum size: 100
Key: No

Create a new Task

Open SMP Console – > Manage -> Jobs and Tasks -> right click and select New -> Task -> Run Script

change „Script Type“ to VBScript and paste VBScript below…
(also take a look at: https://support.symantec.com/us/en/article.howto126871.html

'Pick the appropriate WMI registry hive code and comment the line you don’t use
Const HKEY_LOCAL_MACHINE = &H80000002
Set wshShell = WScript.CreateObject( "WScript.Shell" )
ComputerName = wshShell.ExpandEnvironmentStrings( "%COMPUTERNAME%" )

set nse = WScript.CreateObject ("Altiris.AeXNSEvent")
nse.To = "{1592B913-72F3-4C36-91D2-D4EDA21D2F96}" 'Do not modify this GUID
nse.Priority = 1
dim objDCInstance
set objDCInstance = nse.AddDataClass ("Office 365 Update Channels") 'Your Data Class Here
set objDataClass = nse.AddDataBlock (objDCInstance)

KeyPath = "SOFTWARE\Microsoft\Office\ClickToRun\Configuration" 'Your Registry Key Path Here
ValueName = "CDNBaseUrl" 'Your Registy Entry Here
Set oReg=GetObject("winmgmts:{impersonationLevel=impersonate}!\\.\root\default:StdRegProv")

'Use the HKEY constant defined earlier and use the oReg function appropriate to the type of data in the registry entry
error_returned = oReg.GetStringValue(HKEY_LOCAL_MACHINE,KeyPath,ValueName,Value)
if error_returned <> 0 then
KeyPath = "SOFTWARE\Microsoft\Office\ClickToRun\Configuration"
error_returned = oReg.GetStringValue(HKEY_LOCAL_MACHINE,KeyPath,ValueName,Value)
end if

set objDataRow = objDataClass.AddRow
objDataRow.SetField 0, Value
'If your data class has more than one attribute add a line for each
'objDataRow.SetField 1, Value2
nse.Send
'Uncomment the line below for testing purposes
'MsgBox nse.Xml

Create a "New Schedule" to run the Task on all Clients Computers!

Check if the Data exists on a Client Computer

In this example it is the: O365 Semi-Annual Channel

Here is a list of Office 365 Update Channels

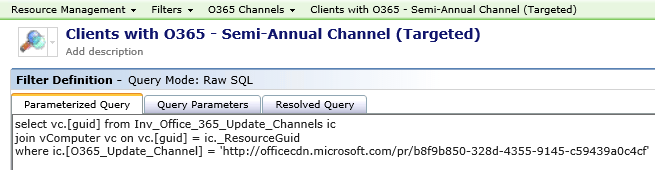

Create Filters for the different Channels

Open SMP Console – > Manage ->Filters -> create a new Folder or use an existing on -> right click -> New -> Filter -> Name the new Filter for example: Clients with O365 – Semi-Annual Channel (Targeted) ->switch Filter Definition to Query Mode: Raw SQL

-> under Parameterized Query paste the following SQL Query:
select vc.[guid] from Inv_Office_365_Update_Channels ic
join vComputer vc on vc.[guid] = ic._ResourceGuid
where ic.[O365_Update_Channel] = ‚http://officecdn.microsoft.com/pr/b8f9b850-328d-4355-9145-c59439a0c4cf&#8216;

Repeat the steps to create a Filter for all Channels

  • Semi-Annual Channel (Targeted) (already created)
  • Monthly Channel
  • Monthly Channel (Targeted)
  • Semi-Annual Channel

Monthly Channel

select vc.[guid] from Inv_Office_365_Update_Channels ic
join vComputer vc on vc.[guid] = ic._ResourceGuid
where ic.[O365_Update_Channel] = ‚http://officecdn.microsoft.com/pr/492350f6-3a01-4f97-b9c0-c7c6ddf67d60&#8216;

Monthly Channel (Targeted)

select vc.[guid] from Inv_Office_365_Update_Channels ic
join vComputer vc on vc.[guid] = ic._ResourceGuid
where ic.[O365_Update_Channel] = ‚http://officecdn.microsoft.com/pr/64256afe-f5d9-4f86-8936-8840a6a4f5be&#8216;

Semi-Annual Channel

select vc.[guid] from Inv_Office_365_Update_Channels ic
join vComputer vc on vc.[guid] = ic._ResourceGuid
where ic.[O365_Update_Channel] = ‚http://officecdn.microsoft.com/pr/7ffbc6bf-bc32-4f92-8982-f9dd17fd3114&#8216;

Filters can also be used to change the Channel later if nessessary!

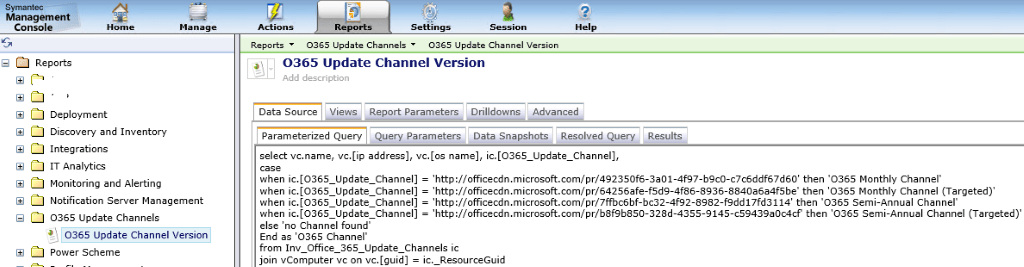

Create a Report for O365 Update Channels

Open SMP Console – >All Reports ->create a new Folder or use an existing one -> right click and select -> New ->Report-> SQL Report -> give the Report a name for example O365 Update Channel Version -> under Parameterized Query paste the following SQL Query

select vc.name, vc.[ip address], vc.[os name], ic.[O365_Update_Channel],
case
when ic.[O365_Update_Channel] = ‚http://officecdn.microsoft.com/pr/492350f6-3a01-4f97-b9c0-c7c6ddf67d60&#8216; then ‚O365 Monthly Channel‘
when ic.[O365_Update_Channel] = ‚http://officecdn.microsoft.com/pr/64256afe-f5d9-4f86-8936-8840a6a4f5be&#8216; then ‚O365 Monthly Channel (Targeted)‘
when ic.[O365_Update_Channel] = ‚http://officecdn.microsoft.com/pr/7ffbc6bf-bc32-4f92-8982-f9dd17fd3114&#8216; then ‚O365 Semi-Annual Channel‘
when ic.[O365_Update_Channel] = ‚http://officecdn.microsoft.com/pr/b8f9b850-328d-4355-9145-c59439a0c4cf&#8216; then ‚O365 Semi-Annual Channel (Targeted)‘
else ’no Channel found‘
End as ‚O365 Channel‘
from Inv_Office_365_Update_Channels ic
join vComputer vc on vc.[guid] = ic._ResourceGuid
